Integral Cement Silo
+86 185 0384 5123Order Phone
Overview:

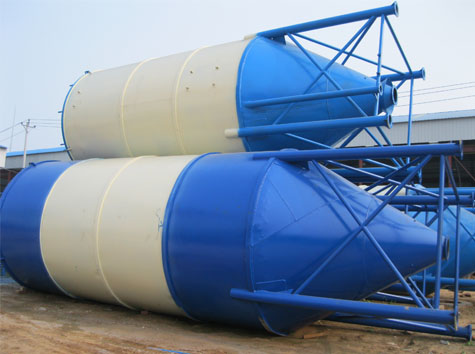

Cement silo is an enclosed tank storage of bulk material,suitable for storage of cement,fly ash,grain and other bulk materials.The parts of the cement silos are manufactured in high quality by means of special moulds, apparatus system and the welding robot which has sensitive detectors. All parts of cement silos are being painted with epoxy primer and epoxy top coat paint in special paint booths which have advanced technology.
Features:
- Perfect sealing assures its efficient working performance
- Environment friendly design: it is equipped with filter which can reduce the air pollution
- Bolted cement silo is especially suitable for loading into containers and exporting to overseas
- Can be customized
Technical:
| Model | Tank Diameter (m) | Cone Height (m) | Tank Height (m) | Landing Leg Height (m) | Overall Height(m) |
| 30 T | 3 | 2.5 | 2.5 | 2 | 8 |
| 50 T | 3 | 2.5 | 5 | 2 | 10.5 |
| 60 T | 3 | 2.5 | 6 | 2 | 11.5 |
| 80 T | 3 | 2.5 | 7.5 | 2 | 13 |
| 100 T | 3 | 2.5 | 9.3 | 2 | 14.8 |
| 150 T | 3.2 | 3 | 13.5 | 2 | 19.5 |
