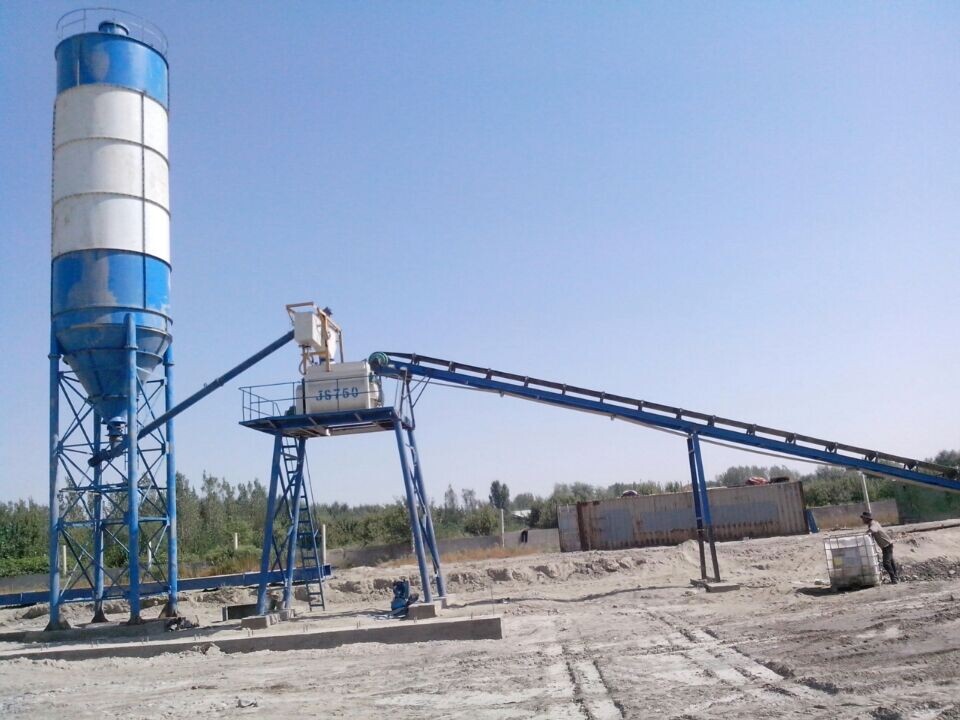

HZS35 concrete mixing plant:
HZS35 concrete mixing plant is composed of feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.), featured by high-precision computer control. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation. It can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.
 Excellent Mixing Performance
1. The concrete mixer JS750 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
5. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements
 Concrete mixing system
JS 750 is horizontal twin-shaft forced mixing machine with two advantages of independent performance or forming simple concrete mixing plants with PLD batching machines. It acts as the main machine for mixing plants. The twin-shaft mixer mixes evenly and efficiently. Its mixing quality is much higher.
 Batching system:
PLD1200 is automatic material distribution part used before the mixing process. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user. This series of products adopt electronic weighing and digital display. It is characterized by accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation.

Parameters

Model		HZS25	HZS35	HZS50
The Whole Station	Max. Productivity	25 m3/h	35 m3/h	50 m3/h
	Discharge Height	1.5-3.8 m	1.5-3.8 m	1.5-3.8 m
	Working Cycle	72 s	72 s	72 s
	Dimension (LxWxH)	11693x13060x17245 mm	12922x13000x17245 mm	15922x13500x17750 mm
	Power	50.25 kw	75 kw	90 kw
Concrete Mixer		JS500	JS750	JS1000
Batching Machine		PLD800	PLD1200	PLD1600
Pneumatic system	Air Compressor Model	1.0-7	1.0-7	1.5-7
	Nominal Displacement	1.67 m3/min	1.67 m3/min	1.67 m3/min
	Rated Discharge Pressure	0.8 mpa	0.8 mpa	0.8 mpa
	Motor power	5.5 kw	5.5 kw	7.5 kw
Measurement Accuracy of Weighing system	Aggregate	±2%	±2%	±2%
	Cement	±1%	±1%	±1%
	Water	±1%	±1%	±1%
	Admixture	±1%	±1%	±1%
