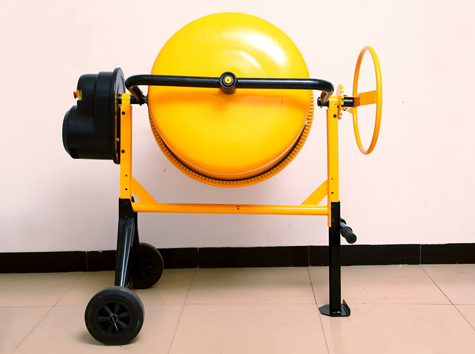

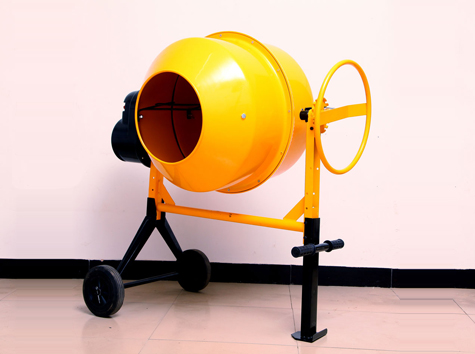

Horizontal type with wheel operation Concrete Mixer

+86 185 0384 5123Order Phone
Online
Overview:

The portable horizontal electric  concrete mixer  is suitable for mixing dry, semi dry, plastic and various proportion of concrete, to meet the requirements of different working conditions.The small-sized concrete mixer has  the characteristics of high efficiency of mixing, stirring, less residual, good sealing performance, less dust , easy to clean,etc.This kind of mixer is the ideal laboratory for concrete mixing equipment.

Features:
  • Reliable drive,simple and stable operation.
  • Reasonable structure,low energy consumption.
  • Good mixing quality, short mixing time.
Technical:

MODEL

80L

100L

120L

140L

160L

180L

200L

220L

240L

MOTOR POWER

500W

500W

500W

500W

700W

700W

1000W

1000W

1000W

VOLTAGE

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

220--240V 50HZ
110-120V 60HZ

CARTON
DIMENSION
(cm)

73x59x43

73x59x43

73x59x43

79x75x45

79x75x45

79x75x45

79x75.5x50

79x75.5x51

79x75.5x52

DRUNM DIAMETER

500mm

500mm

500mm

650mm

650mm

650mm

650mm

650mm

650mm

DRUM HEIGHT

510mm

510mm

570mm

430mm

490mm

550mm

610mm

670mm

700mm

MOUTH DIAMENTER

340mm

340mm

340mm

395mm

395mm

395mm

395mm

395mm

395mm

UPPER DRUM
THICKNESS

1.5mm

1.5mm

1.5mm

1.5mm

1.5mm

1.5mm

1.5mm

1.5mm

1.5mm

LOWER DRUM
THICKNESS

2.0mm

2.0mm

2.0mm

2.0mm

2.0mm

2.0mm

2.0mm

2.0mm

2.0mm

N.W/G.W
(kg/pc)

46/49

49/51

52/56

59.5/66.5

61.5/68.5

63.5/70.5

68.5/72.5

71/75.5

75/79

MOTOR SPEED

RPM1400-2800

RPM1400-2800

RPM1400-2800

RPM1400-2800

RPM1400-2800

RPM1400-2800

RPM1400-2800

RPM1400-2800

RPM1400-2800

DRUM SPEED

28RPM

28RPM

28RPM

28RPM

28RPM

28RPM

28RPM

28RPM

28RPM

QTY. OF 20'FT

147

147

147

105

105

105

84

84

84

QTY. OF 40'FT

300

300

300

225

225

225

180

180

180

QTY. OF 40'HQ

360

360

360

225

225

225

225

225

225

WHEEL SIZE

155x30

155x30

155x30

235x60

235x60

235x60

235x60

235x60

235x60

INSULATION LEVEL

IP45

IP45

IP45

IP45

IP45

IP45

IP45

IP45

IP45
