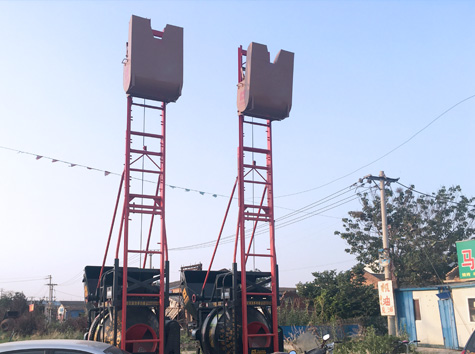

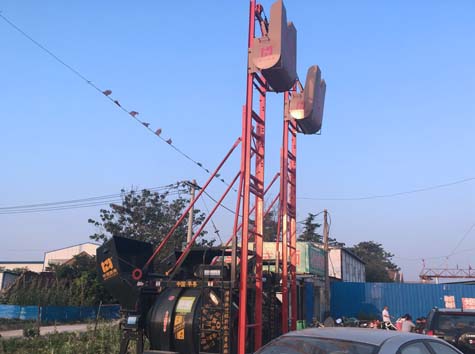

JZC300 Concrete Mixer with Lift

+86 185 0384 5123Order Phone
Online
Overview:
Concrete Mixer with Lift is a self-falling concrete mixing machine, discharging with the double wimble rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely. The user can dig a hole for fixed mix; it can make the hopper orifice level with the ground. By this way, feeding will be more convenient.

The lift hopper can carry the mixed concrete to 3-25m height. It will save more manpower. And you can adjust the ladder height in accordance with your actual need.
Features:
  • Save Manpower.
  • Advanced performance.
  • High productivity, high mixing quality.
  • Convenient to move, compact structure.
  • Easy to operate and maintain.
Technical:
Model JZC300 with Lift
Feeding Capacity 480 L
Discharging Capacity 300 L
Productivity 9-12 m3 /h
Drum Rotating Speed 17 r/min
Max. Aggregate Size 60 mm
Water Precision Error≤ 2%
Mixing Motor 4 kw
Lifting Motor 5.5 kw
Pump Motor 0.55 kw
Lifting Height 3-25 m
Dimension ( L×B×H) 2260×1990×2750 mm
