Overview:

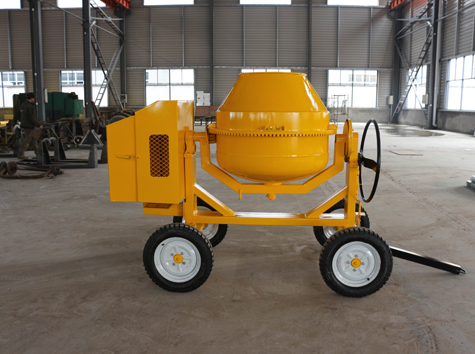

Portable Concrete Mixer with Tilting Drum is a very popular model of mixers worldwide, both for industry purpose and DIY jobs.The power unit is optional, which can be diesel engine, petrol engine or electric motor, the mixer brings with universal seat for different power.For smaller volume works, portable concrete mixer is widely used so that the concrete can be made at the construction site, giving the workers enough time to use the concrete before it hardens.
Features:
-
Lockable engine compartment.
-
High mixing performance and long life without maintenance.
-
Rigid mixing drum with reinforced rim.
-
Ergonomic and safe tipping system.
Technical:
Model |
CM-2/4CP
|
Charging Capacity |
350 L |
400 L |
500 L |
Reclaiming Capacity |
280L |
320 L |
400 L |
Productivity |
5 m³/h |
6 m³/h |
8 m³/h |
Speed of Mixing Drum |
30 r/min |
Motor Power |
6 HP |
Motor Engine |
Diesel Engine / Gasoline Engine / Electric Motor |
Drum Thickness |
2.75-3.75 mm |
Transmission Way |
Gear Wheel |
Type of The Tires |
4.00-8 |
Dimension (L×W×H mm) |
1860×860×1100 |
1960×960×1200 |
2060×1060×1250 |
Weight(kg) |
300 |
320 |
330 |
Loading Plan |
14 sets Per 20GP , 28 sets Per 40 HC |
