Overview:

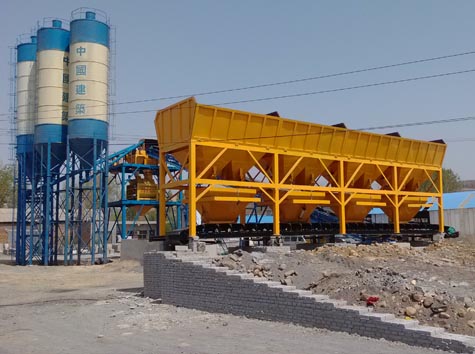

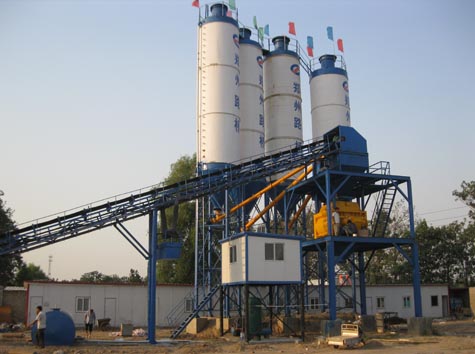

HZS120 concrete batching plant consists of twin-shaft mixer, batching machine, cement silo, screw conveyor, belt conveyor, computer controlling system.The main machine JS2000 is forced and efficient concrete mixer and it can mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.It is widely applied in large and middle building sites, highways, bridge project, and prefabricated concrete plant.
Features:
  • The concrete mixer JS2000 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
  • The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
  • Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability.
  • The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.
  • The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Technical:
Model HZS120
The Whole Station Max. Productivity 120 m3/h
Discharge Height 4 m
Working Cycle 60 s
Dimension (LxWxH) 60120x13700x18704 mm
Power 210 kw
Concrete Mixer   JS2000
Batching Machine   PLD3200
Pneumatic system Air Compressor Model 1.8-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 15 kw
Measurement Accuracy of Weighing system Aggregate ±2%
Cement ±1%
Water ±1%
Admixture ±1%
