HZS180 Concrete Batching Plant

+86 185 0384 5123Order Phone
Online
Overview:

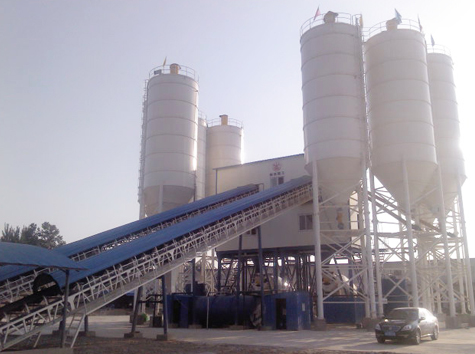

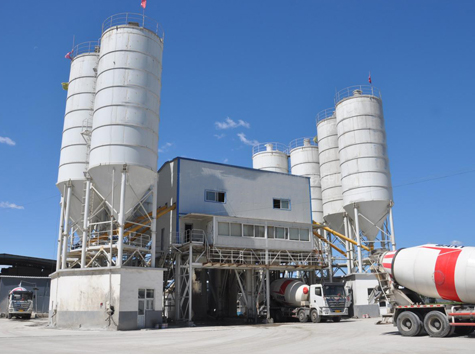

HZS180 concrete batching plant includes two rows of cement silos, screw conveyors, belt conveyor, batching machine PLD4800, twin-shaft forced concrete mixing JS3000, computer controlling and measuring system, etc.During its running time, all work is controlled by the computer control room. It can supply the concrete simultaneously for two concrete transportation tanks. Meanwhile, new control technologies are adopted now, such as electronic weighing, compact control and digital display, etc.Electronic weighing is equipped with shock-absorber and automatic compensation function,therefore,the measuring accuracy can be much improved.Aggregate is fed by belt conveyor. Numerous advantages of HZS180 contributes to its wide applications in commercial concrete mixing companies and many construction organizations.
Features:
  • The concrete mixer JS3000 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
  • The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
  • Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability.
  • The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.
  • The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Technical:
Model HZS180
The Whole Station Max. Productivity 180 m3/h
Discharge Height 4 m
Working Cycle 60 s
Dimension (LxWxH) 43538x24000x18704 mm
Power 260 kw
Concrete Mixer   JS3000
Batching Machine   PLD4800
Pneumatic system Air Compressor Model 1.8-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 15 kw
Measurement Accuracy of Weighing system Aggregate ±2%
Cement ±1%
Water ±1%
Admixture ±1%
