HZS25 Concrete Batching Plant
+86 185 0384 5123Order Phone
Overview:

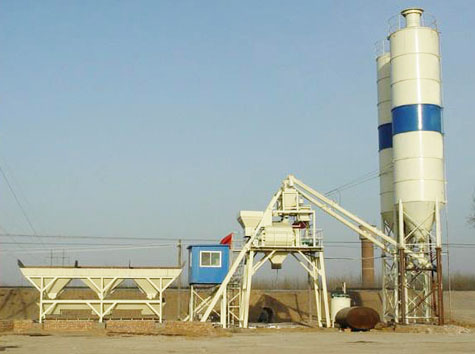

HZS25 concrete batching plant is mainly composed of PLD 800 batching machine, JS500 concrete mixer, cement silos, automatic computer control system, electronic weighing, belt conveyor and others.It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.The fixed concrete batching plant can be used for industry, construction, road, railway, bridge, water conservation, ports and so on.
Features:
- Aggregate adopts batching machine, accurate measurement and high production efficiency.
- Water supply system adopts the principle of pump pressure, the water flow speed spray evenly.
- Water, concrete, water admixtures adopt electronic weighing, ingredients of high precision.
- Adopt JS500 twin-shaft forced concrete mixer(the main machine of the concrete batching plant) with high mixing quality and productivity.
- Advanced central control system with stable and high-precision compounding, latest calculation method, effective control of error; fault diagnosis system help users rule out trouble; the flexible storage and can of formulas, users can call formula at any time.
Technical:
| Model | HZS25 | |
|---|---|---|
| The Whole Station | Max. Productivity | 25 m3/h |
| Discharge Height | 1.5-3.8 m | |
| Working Cycle | 72 s | |
| Dimension (LxWxH) | 11693x13060x17245 mm | |
| Power | 50.25 kw | |
| Concrete Mixer | JS500 | |
| Batching Machine | PLD800 | |
| Pneumatic system | Air Compressor Model | 1.0-7 |
| Nominal Displacement | 1.67 m3/min | |
| Rated Discharge Pressure | 0.8 mpa | |
| Motor power | 5.5 kw | |
| Measurement Accuracy of Weighing system | Aggregate | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| Admixture | ±1% | |
